USB Powered Serial Data Retriever, Data Logger, Protocol Analyzer, and Monitor G833854

The Data Hog Plus-U is a multi-function battery powered data collector that can continuously store data for up to 2 weeks using a 9V alkaline battery or more than a month with a 9V lithium. It supports up to 128GB SD cards with familiar terminal commands like “DIR”, “CD”, “COPY”, etc. and can upload/download files or run programs directly from the serial channel. Main features include:

- Add an SD Card to any serial interface including USB, RS232, SPI, I2C, and +3.3V TTL Logic Level Serial
- Automatically transfer programs or data to a connected device
- Convert between channels (USB to RS232 for example) while optionally logging all activity to a timestamped protocol analysis file as text or color-coded HTML
- Powered from internal battery, USB port, or external 4V-16V input
- Provides up to 250mA @ +3.3V output to external devices
- Custom programs allow more complex operation with unit responding to events
- Temperature compensated clock/calendar with high-speed timer
- Speeds up to 2Mbps for USB, RS232 and +3.3V TTL serial with auto-baud detection
- SPI speeds up to 24Mhz, I2C up to 1Mhz and can act as master or slave with multiple clock options
- 6 GPIO pins operating as: Input with optional pull up/down, Output, Interrupt Trigger from Falling/Rising/Both Edges, plus two Analog Voltage Input pins
- Temperature Monitor

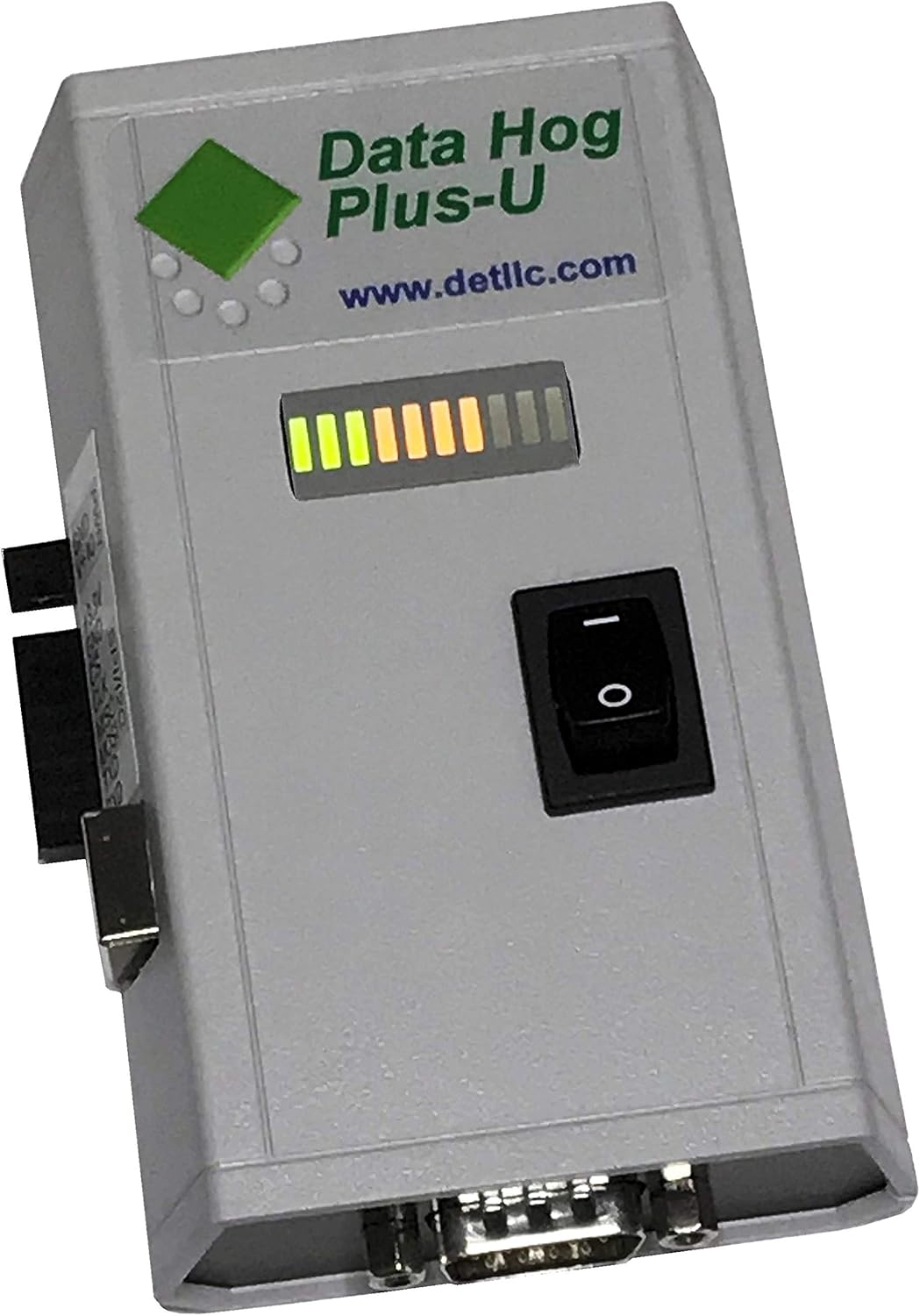

- 10 segment multi-color LED bar graph displays status or user specified value

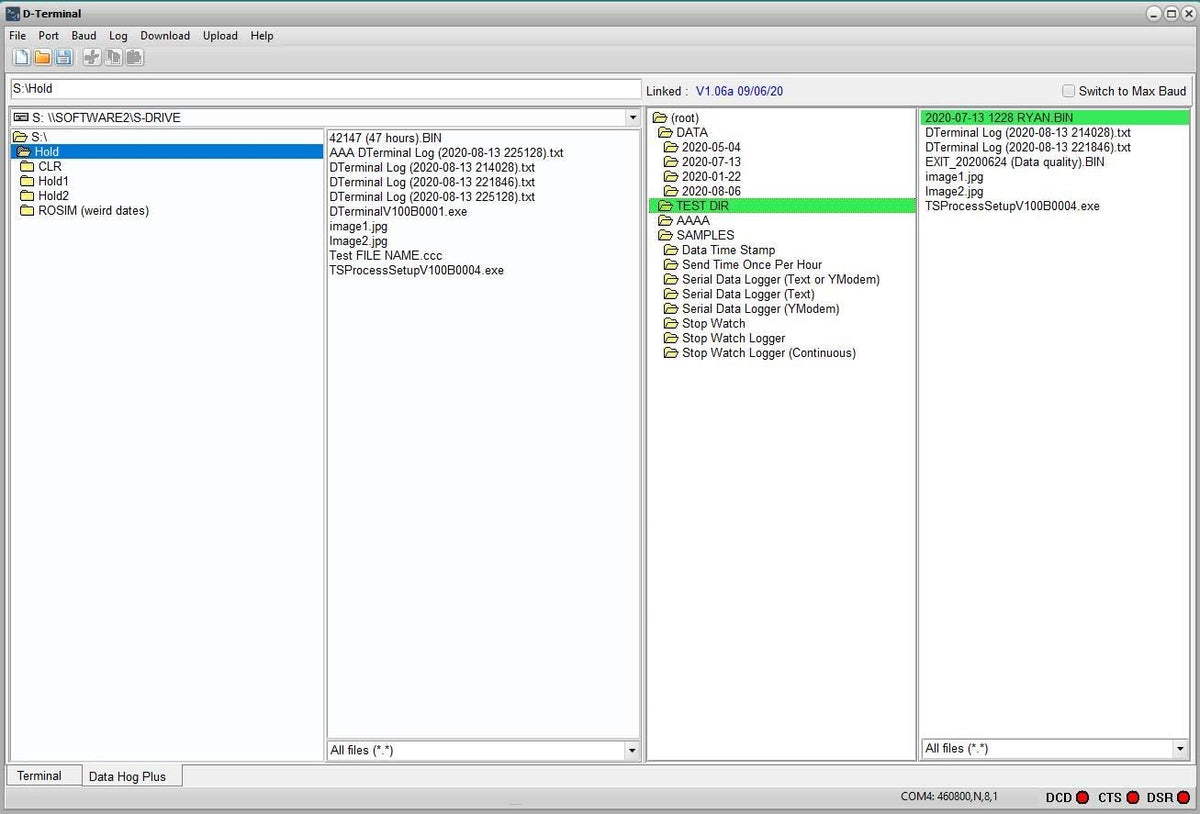

- Easily setup and controlled through any terminal app and includes Windows “D-Terminal” program with specialized functions to edit/cut/copy/paste files to/from the SD card
- Made in USA

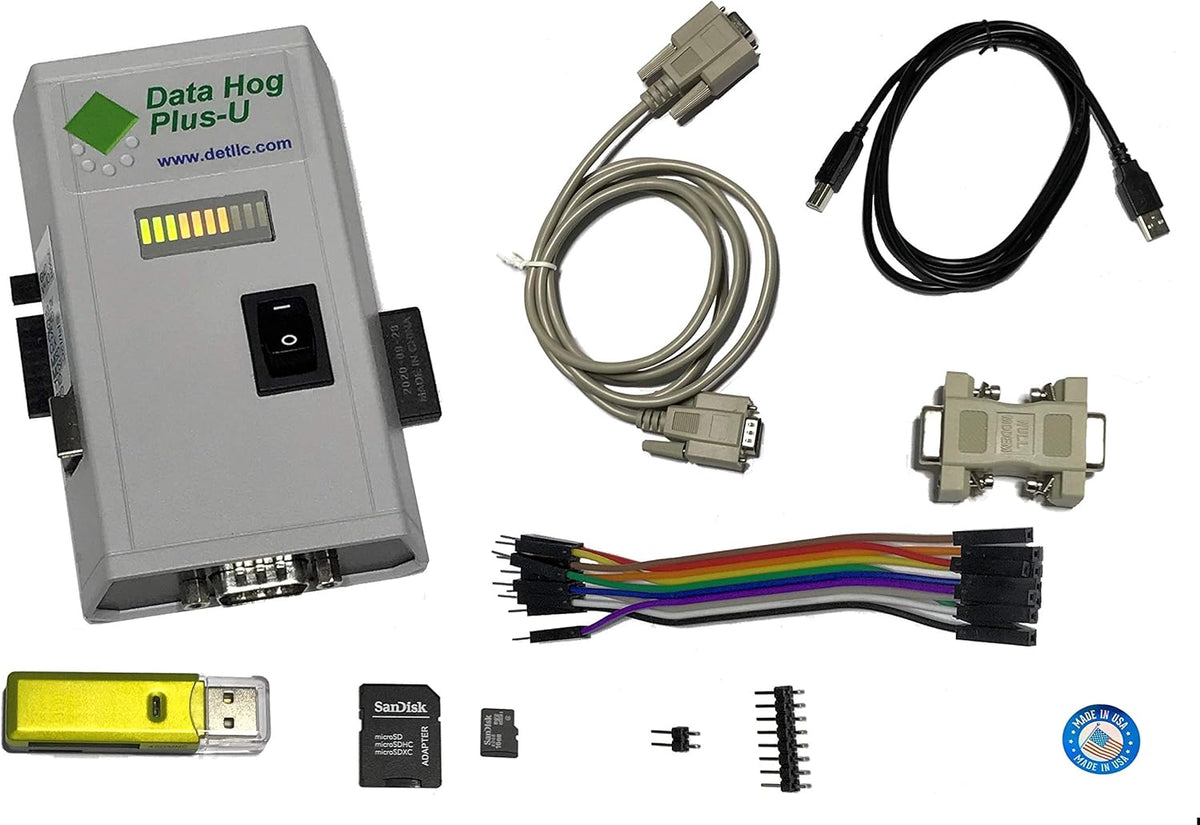

Development kit includes:
- Data Hog Plus-U
- 16GB SD Card pre-loaded with D-Terminal App, Manual, and examples
- 6’ Serial Cable + NULL Modem adapter
- USB Cable (‘A’ to ‘B’)
- 10 pin male-to-female wiring harness plus 2 and 8 pin headers (for GPIO/SPI/I2C/TTL Serial)

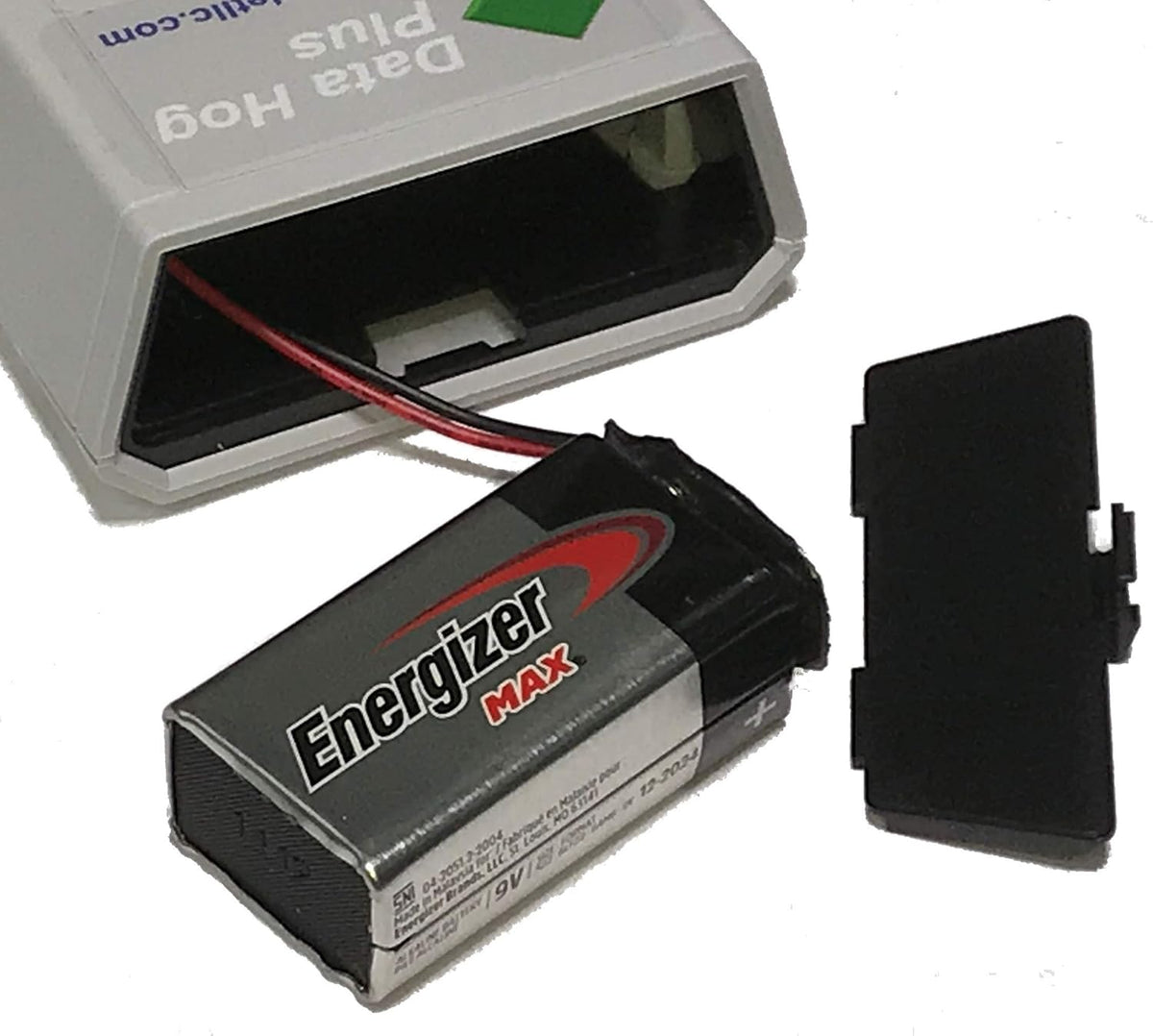

- 9V Alkaline Battery
